Parametric Boxes

CuteCad provides to make standard parametric ESBO/FEFCO ready-to-cut boxes with contours, inner holes, cuts and creases, by giving code, size, flaps and material thickness.

The ESBO/FEFCO codes currently supported are: 0200, 0201, 0202, 0203, 0204, 0205, 0206, 0421, 0427. Additional box models (standard FEFCO/ESBO or your own) can be developed and quoted according to the complexity of the drawing.

See below some examples:

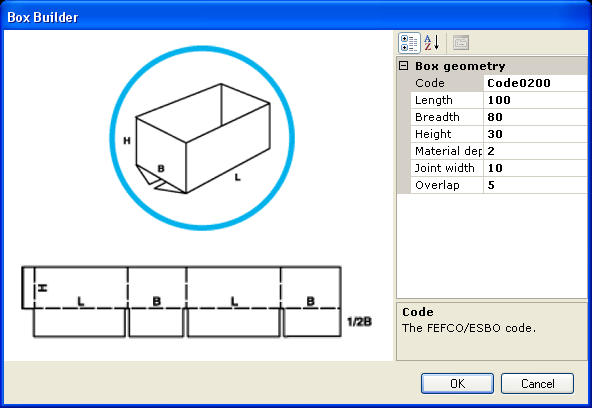

Standard Box Model

Code: the FEFCO/ESBO code.
Length: the internal length of the box.
Breadth:: the internal breadth of the box.
Height: the internal height of the box.
Material thickness: the thickness of the material.
Joint width: the width of the joint.
Overlap: the overlap of the flaps

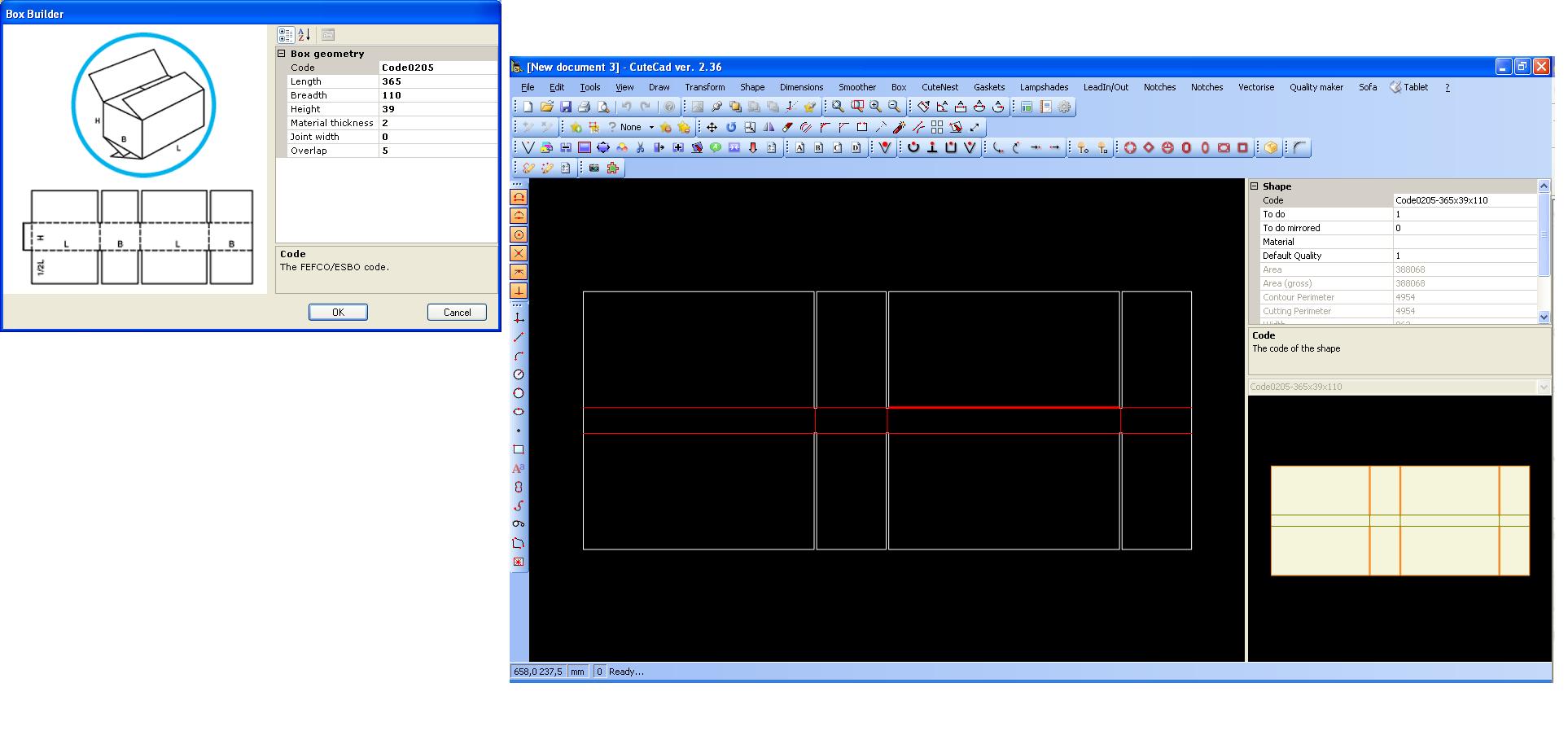

FEFCO/ESBO code 0205

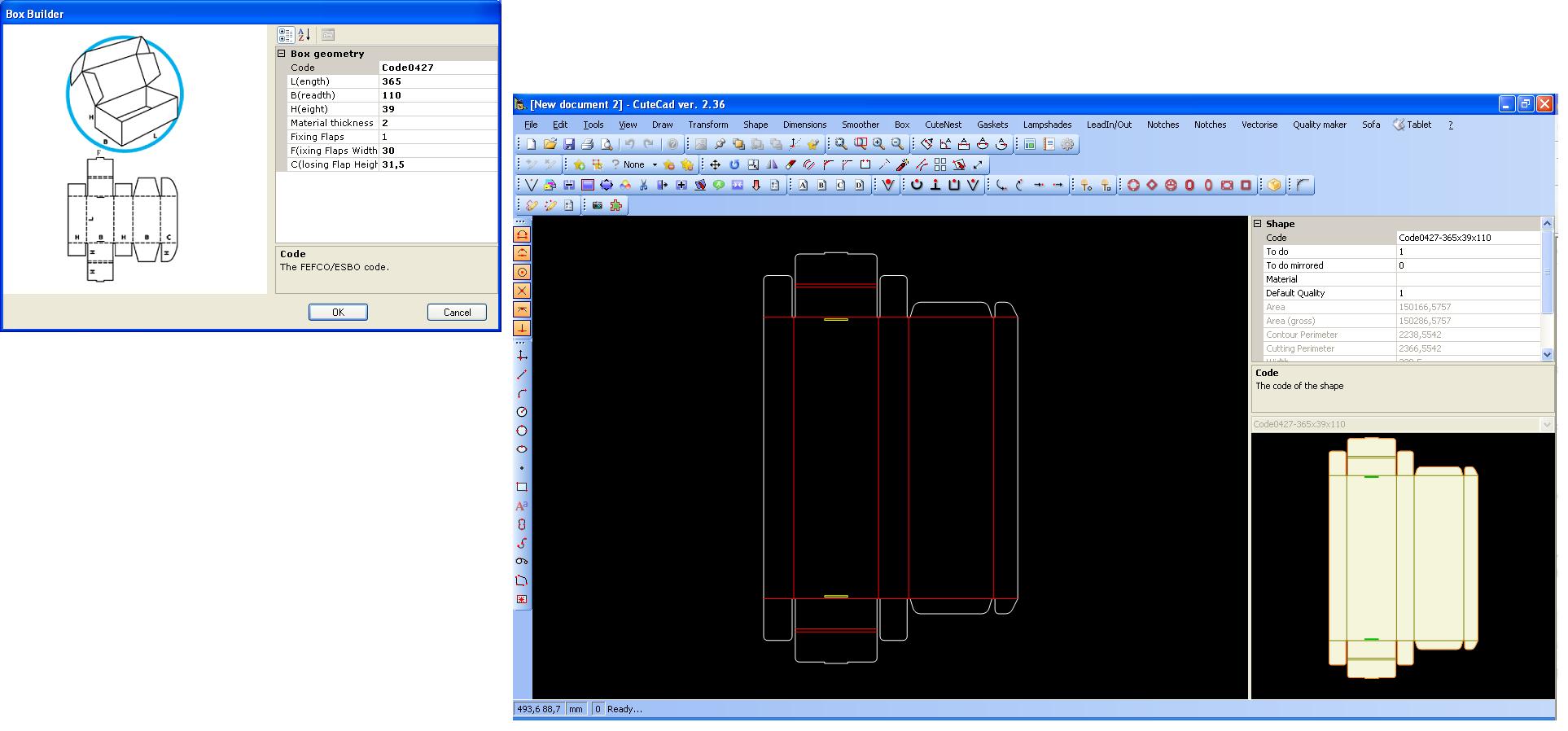

FEFCO/ESBO code 0427
